Description

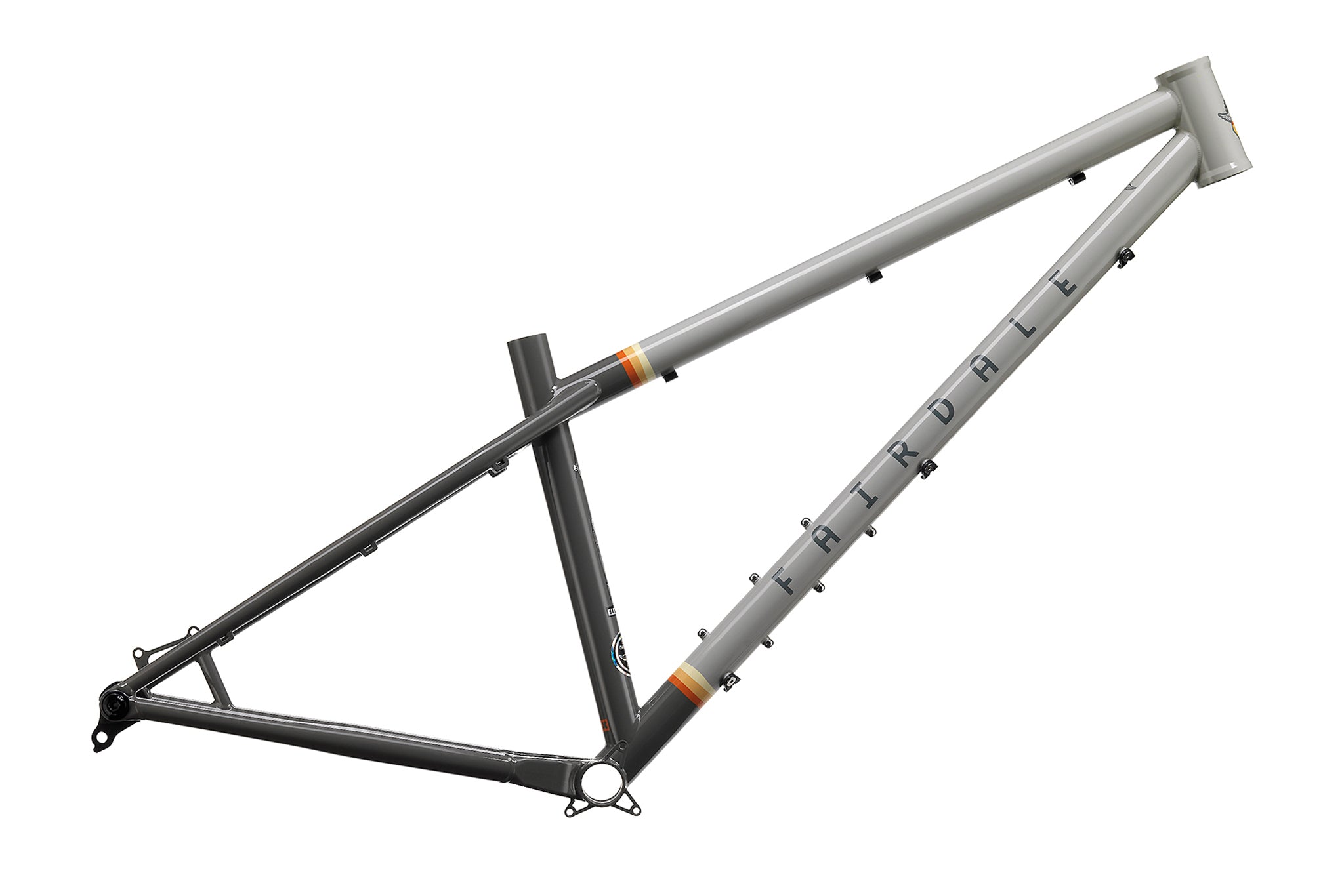

mountainbikes net online shop Fairdale Elevator 29" Frame Kit (Gloss Battleship Gray in S-L)The Fairdale Elevator is a BMX inspired, full chromoly all arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevators unique ride feel will let you easily throw in a manual or re adjust your position on a line, thanks to the super short 406mm chainstay length. As always, making the ride fun is our main priority. This is a frame that lets you feel
The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.
As always, making the ride fun is our main priority. This is a frame that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.
Frame kit includes sealed FSA Orbit ITA headset (not shown), UDH derailleur hanger, and Boost thru-axle.
Features
- 100% 4130 chromoly 29” rigid frame
- Butted top tube, down tube, and seat tube
- Highly maneuverable BMX-inspired geometry
- Investment cast yoke allows for extra short chain stays and 2.5” tire clearance
- External brake, derailleur, and dropper post routing with removable hardware
- Extensive hardware for bottles, accessories and ISCG mounting
Sizing
Small Reach: 5'4" - 5'8" height
Medium Reach: 5'7" - 5'11" height
Large Reach: 5'10" - 6'2" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Geometry
| Size |
Small | Medium | Large |
| Fork Travel | 130mm | 130mm | 130mm |
| Fork Axle-to-Crown | 541mm | 541mm | 541mm |
| Fork Offset | 44mm | 44mm | 44mm |
| Wheelbase | 1156mm | 1177mm | 1200mm |
| Front-Center Length | 755mm | 776mm | 799mm |
| Top Tube (Effective) | 600mm | 620mm | 639mm |
| Seat Tube (BB Center to TT Center) |
360mm | 380mm | 400mm |
| Seat Tube Angle | 76° | 76° | 76° |
| Head Tube Length | 92mm | 102mm | 112mm |
| Head Tube Length w/Lower Headset Cup |
105mm | 115mm | 125mm |
| Head Tube Angle | 65.5° | 65.5° | 65.5° |
| Chain Stay Length | 406mm | 406mm | 406mm |
| Standover | 725mm | 729mm | 745mm |
| Stack | 620mm | 627mm | 636mm |
| Reach | 445mm | 463mm | 482mm |
| BB Drop | 50mm | 50mm | 50mm |
| Rear Dropout Spacing (Boost Thru-Axle) |
12x148mm | 12x148mm | 12x148mm |
| Derailleur Hanger | SRAM UDH | SRAM UDH | SRAM UDH |
| BB Type | 73mm threaded | 73mm threaded | 73mm threaded |
| Seat Post (Dropper Ready) |
31.6mm | 31.6mm | 31.6mm |
| Max Post Insertion (With OneUp Dropper) |
260mm | 280mm | 300mm |
| Seat Clamp | 35mm | 35mm | 35mm |
| Rear Tire Max Clearance | 29x2.50" | 29x2.50" | 29x2.50" |
| Sprocket Max Clearance | 32-T round | 32-T round | 32-T round |
| Brake Rotor Clearance (IS Mount) |
203mm | 203mm | 203mm |
| Wheel Size | 29" | 29" | 29" |
